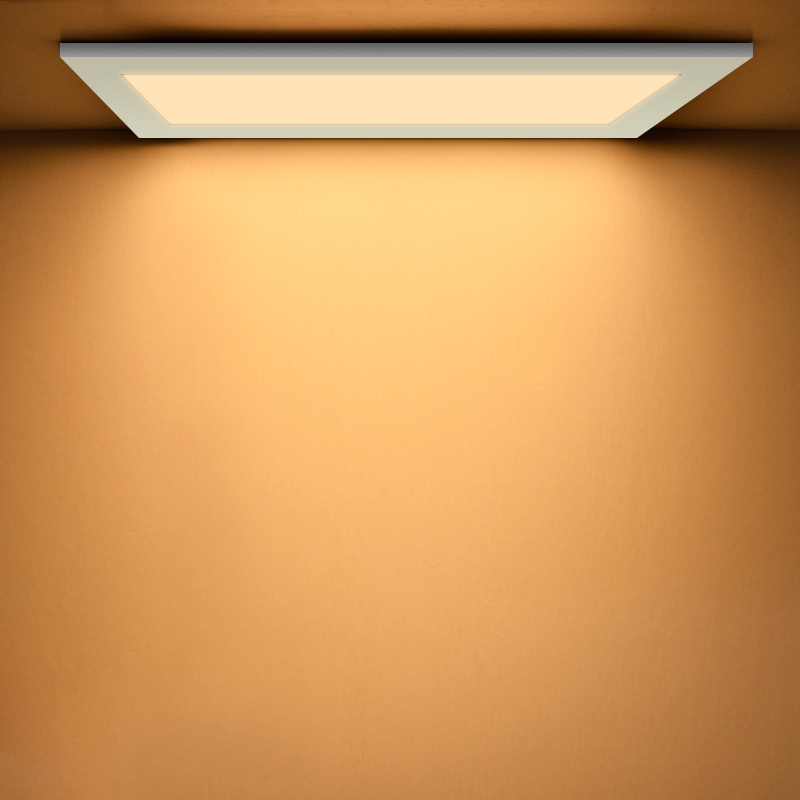

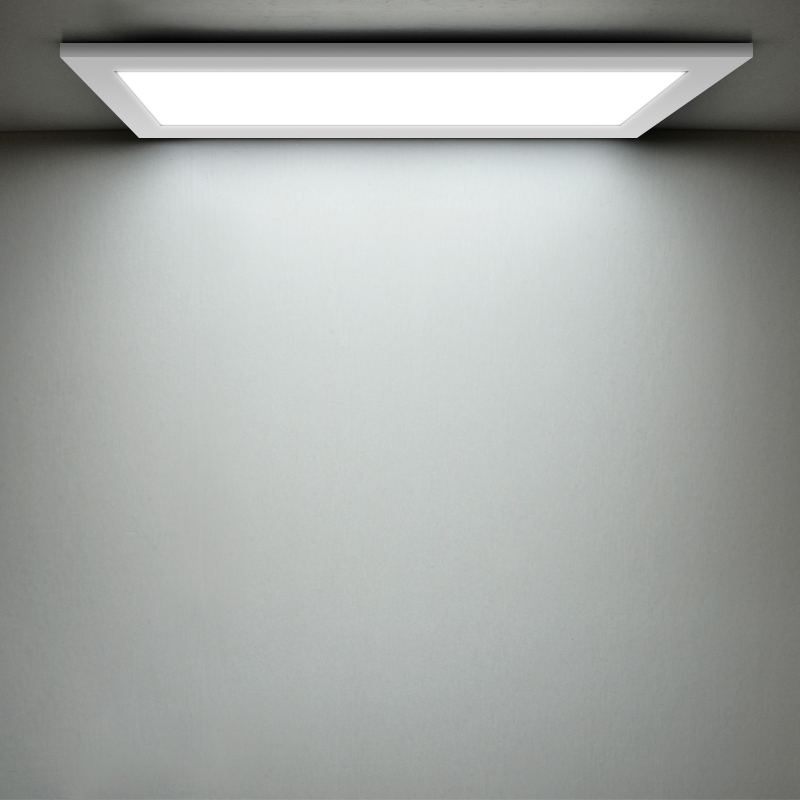

DC24V 60120 (595*1195MM) CCT LED Panel Light

Illuminating your place with CCT dimming panel, a new lighting experience
2700-6500K color temprature output
Soft and uniform light output, Epistar chips and Mitsubishi PMMA LGP for better light output
DC24V input, strong compatibility
Support different control methods: 2.4G, Wifi, Zigbee, Dali, etc.
  • DC24V 60120 (595*1195MM) CCT LED Panel Light
  • DC24V 6060 (595*595MM) CCT LED Panel Light
  • DC24V 6262 (620*620MM) CCT LED Panel Light
  • DC24V 6262 (620*620MM) CCT LED Panel Light
  • DC24V 30120 (295*1195MM) CCT LED Panel Light
  • DC24V 30120 (295*1195MM) CCT LED Panel Light
  • DC24V 60120 (595*1195MM) CCT LED Panel Light
  • DC24V 60120 (595*1195MM) CCT LED Panel Light
SPECIFICATION



PRODUCT DESCRIPTION

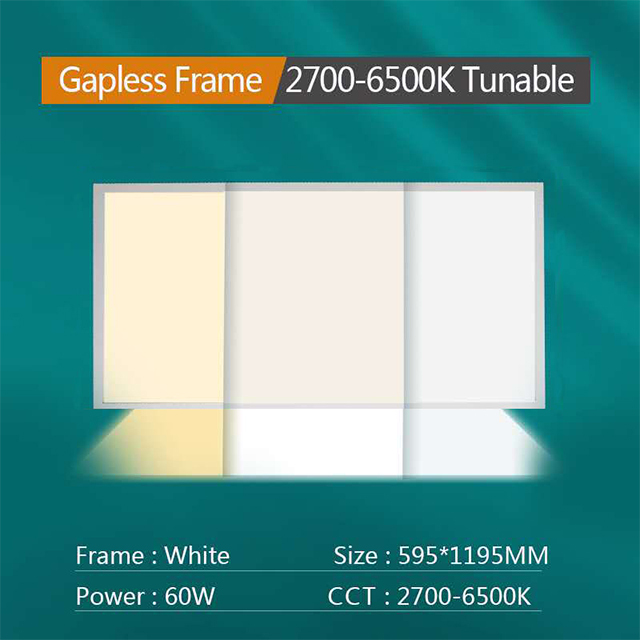

● 2700-6500K color temperature tunable.
● Different CRI option: 80Ra, 90Ra, 95Ra and 97Ra.
● Soft and uniform light output and flicker free.
● Multiple control modes: 2.4G, Wifi, Zigbee, 0-10V, etc.
● Panel structure is very strong, better than most other panels.
● Skillful production lines and general material inventory guarantees short lead time.
● IES/LDT files are available.



ALL PANEL SIZE



PRODUCT PARAMETERS

Model No. WES-PLS60120-60VCP
Size/MM
595×1195×11.5MM
Frame Color
White
Input Voltage
DC24V
Power
60W
LED Type
392PCS SMD2835
CCT Color
2700-6500K Tunable
Luminous Efficiency
90LM/W
LGP Material
PMMA
Guaranty
5 Years


ALL SIZES OPTION

Size Power Color Output CRI Option
295*295*11.5MM 18W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra
295*595*11.5MM 24W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra
595*595*11.5MM 40W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra
620*620*11.5MM 40W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra
295*1195*11.5MM 40W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra
595*1195*11.5MM 60W 2700-6500K CCT Dimming 80Ra/90Ra/95Ra/97Ra

WIRING



Download
