DC24V 3060 (295*595MM) RGB+CCT LED Panel Light

Illuminating your place with RGB+CCT dimming panel, a new lighting experience

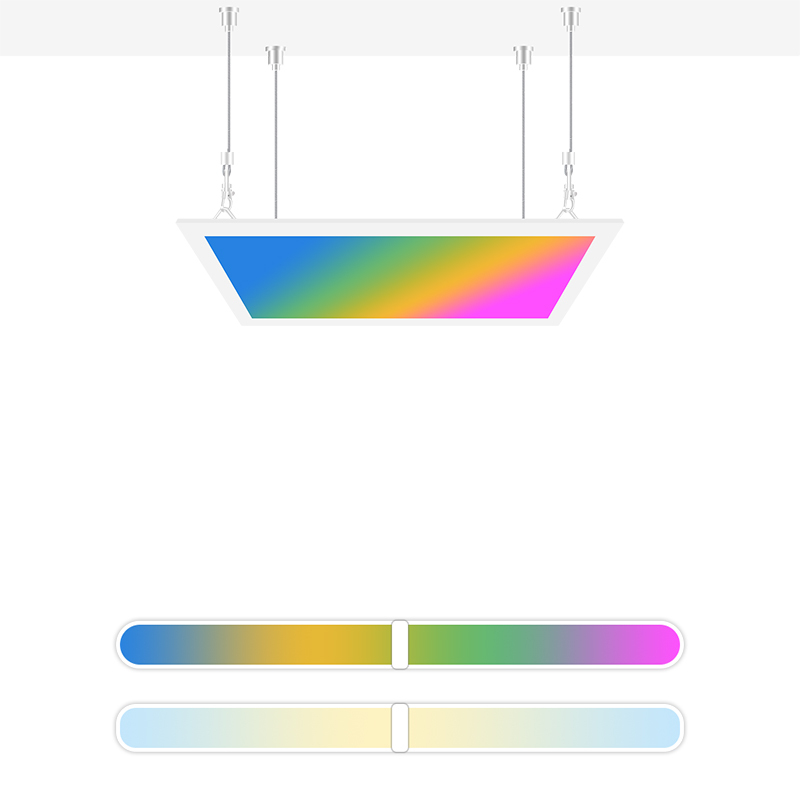

2700-6500K dimming and 16 million RGB color for your choose

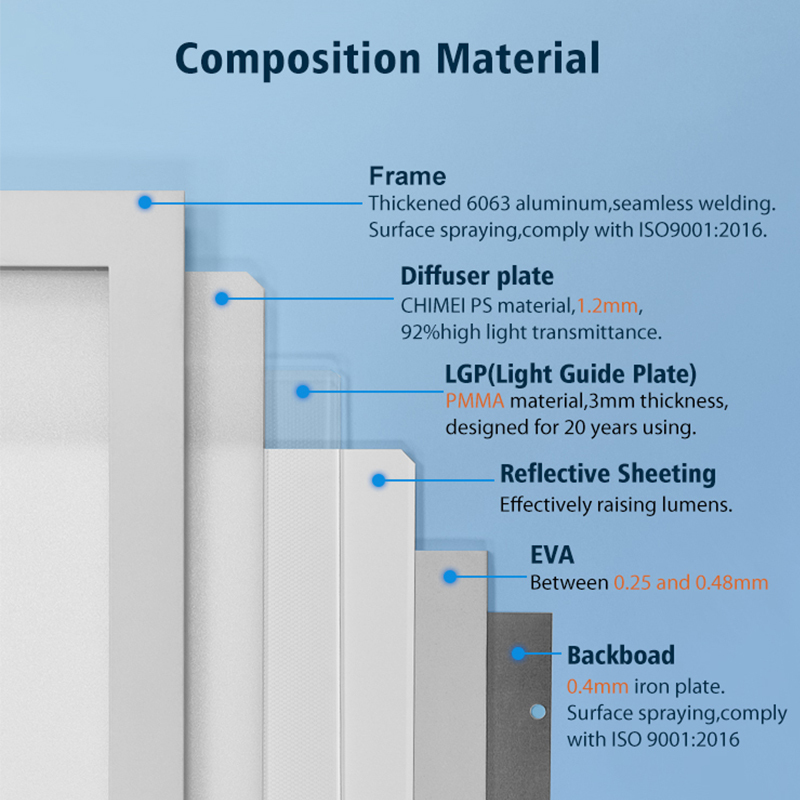

Soft and uniform light output, Epistar chips and Mitsubishi PMMA LGP for better light output
DC24V input, strong compatibility
Support different control methods: 2.4G, Wifi, Zigbee, Dali, etc.
  • DC24V 3060 (295*595MM) RGB+CCT LED Panel Light
  • DC24V 6262 (620*620MM) RGB+CCT LED Panel Light
  • DC24V 60120 (595*1195MM) RGB+CCT LED Panel Light
  • DC24V 60120 (595*1195MM) RGB+CCT LED Panel Light
  • DC24V 30120 (295*1195MM) RGB+CCT LED Panel Light
  • DC24V 6262 (620*620MM) RGB+CCT LED Panel Light
  • DC24V 6262 (620*620MM) RGB+CCT LED Panel Light
  • DC24V 3060 (295*595MM) RGB+CCT LED Panel Light
  • DC24V 3060 (295*595MM) RGB+CCT LED Panel Light
SPECIFICATION



PRODUCT DESCRIPTION

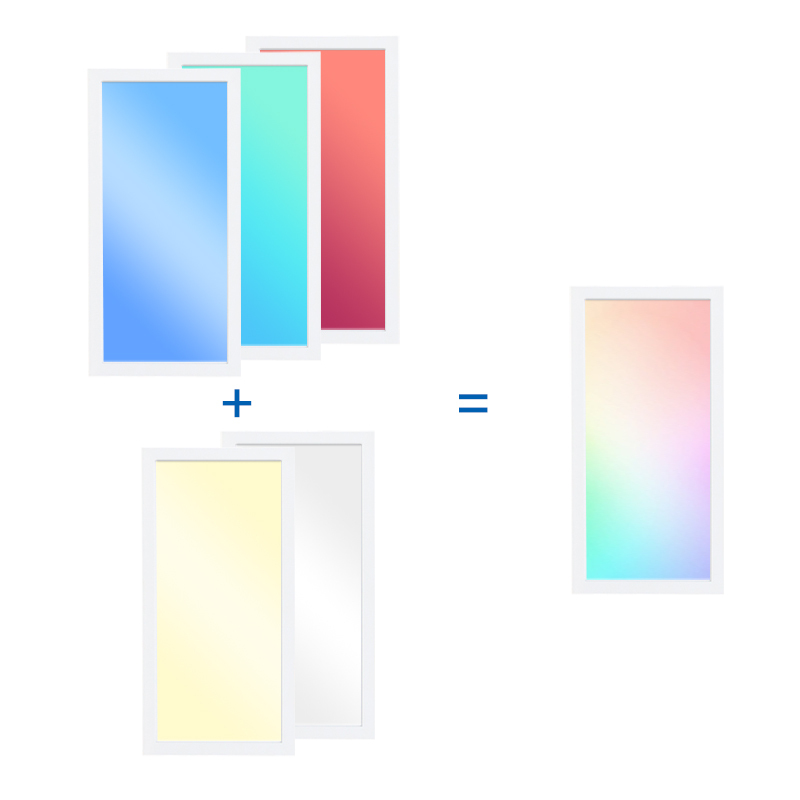

● Sixteen Millions Kinds of Colors.
● 2700-6500K color temperature tunable.
● Different CRI option: 80Ra, 90Ra, 95Ra and 97Ra.
● Soft and uniform light output and flicker free.

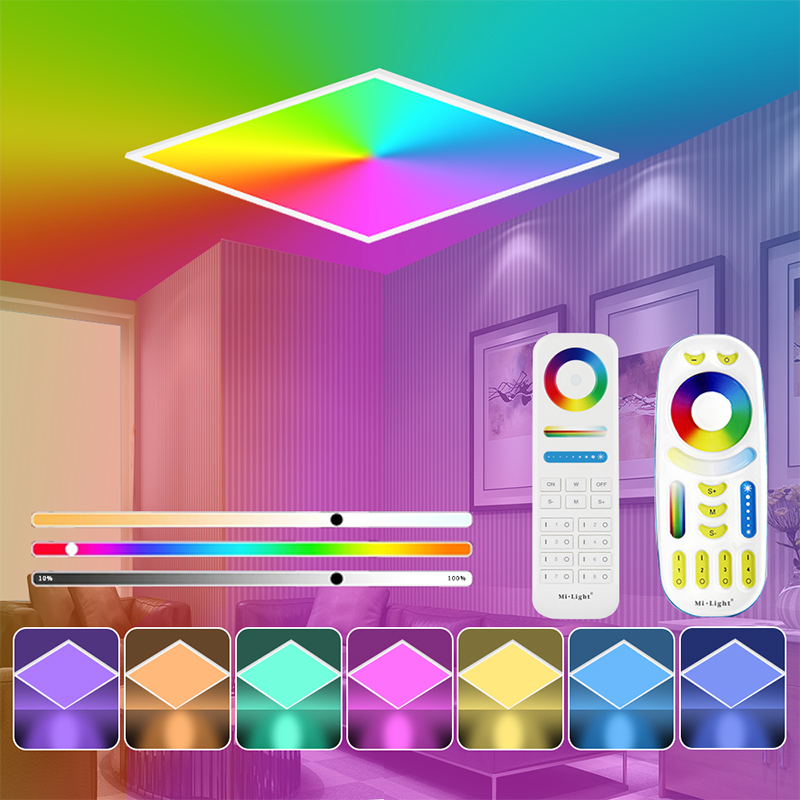

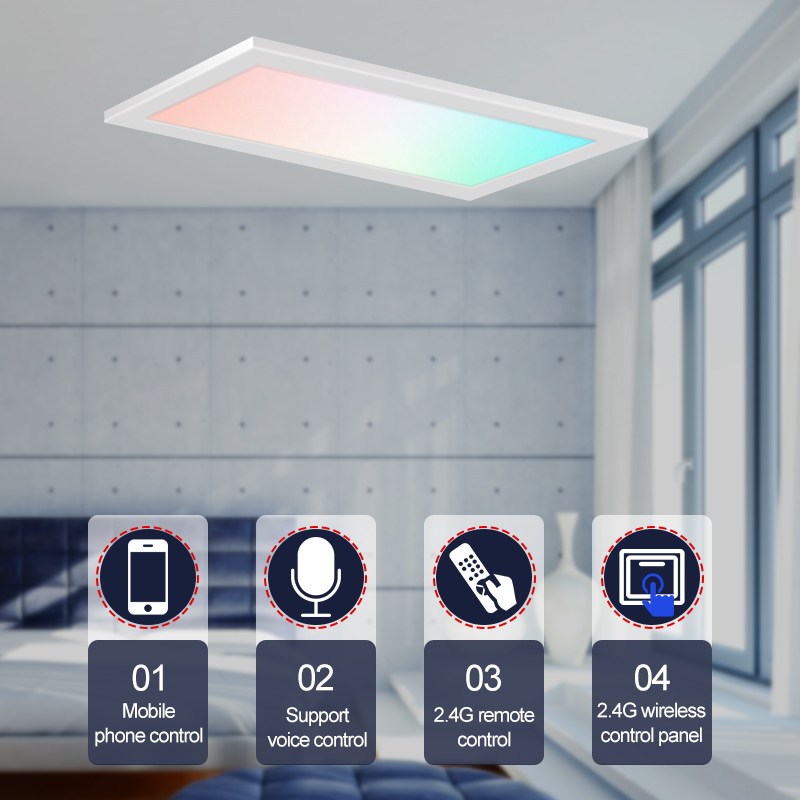

● Multiple control modes: 2.4G, Wifi, Zigbee, 0-10V, etc.

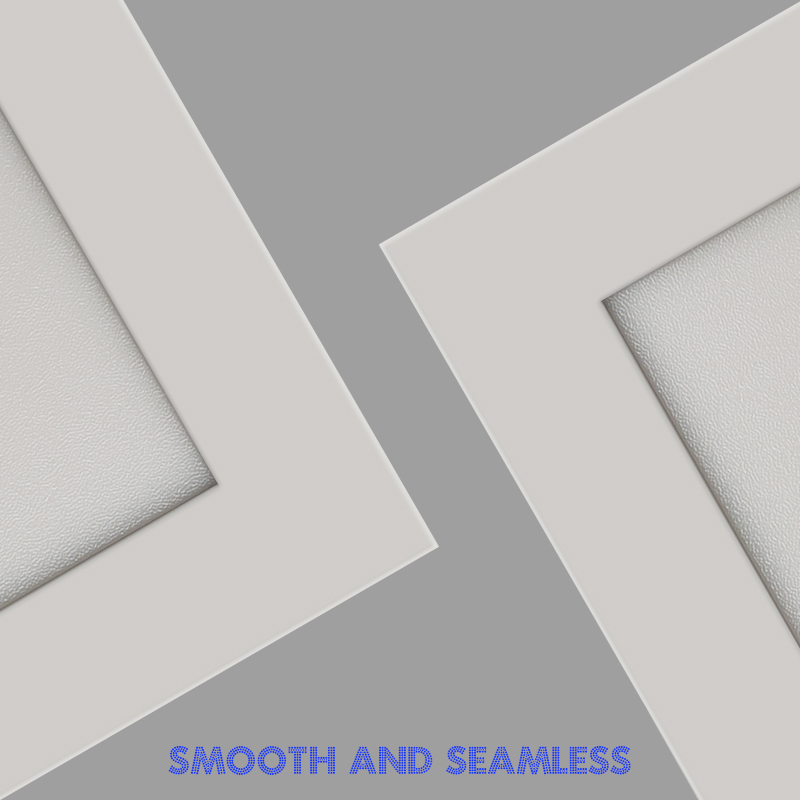

● Panel structure is very strong, better than most other panels.
● Skillful production lines and general material inventory guarantees short lead time.
● IES/LDT files are available.



ALL PANEL SIZE



PRODUCT PARAMETERS

Model No. WES-PLS3060-24RGBCTP
Size/MM
295×595×11.5MM
Frame Color
White
Input Voltage
DC24V
Power
24W
LED Type
196PCS SMD2835
CCT Color
2700-6500K Tunable
RGB Color
16 Million Colors
Luminous Efficiency
80LM/W
LGP Material
PMMA
Guaranty
5 Years


ALL SIZES OPTION

Size Power Color Output CRI Option
295*295*11.5MM 18W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
295*595*11.5MM 24W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
595*595*11.5MM 36W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
595*595*11.5MM 48W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
620*620*11.5MM 36W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
620*620*11.5MM 48W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
295*1195*11.5MM 36W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
295*1195*11.5MM 48W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra
595*1195*11.5MM 60W 2700-6500K+RGB Dimming 80Ra/90Ra/95Ra/97Ra

WIRING
