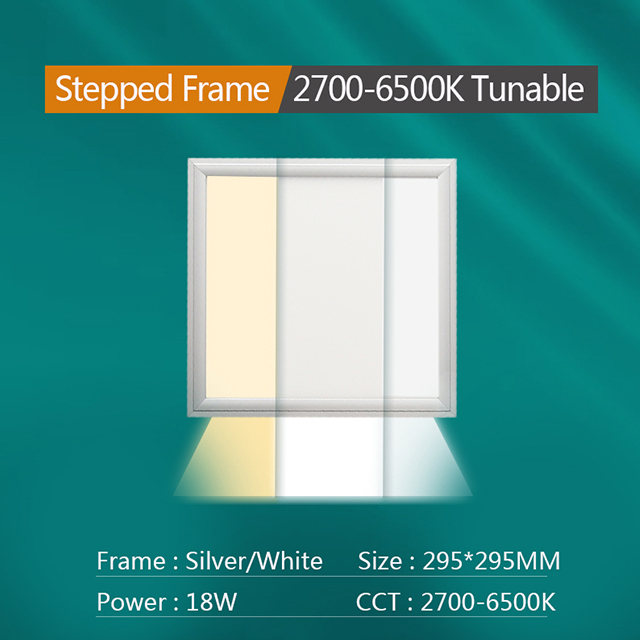

2.4G 295*295mm 3030 CCT Tunable 2700-6500K LED Panel Light

◉ Illuminating your place with 2700-6500K CCT tunable panel, a new lighting experience
◉ Soft and uniform light output, Epistar chips and Mitsubishi PMMA LGP for better light output

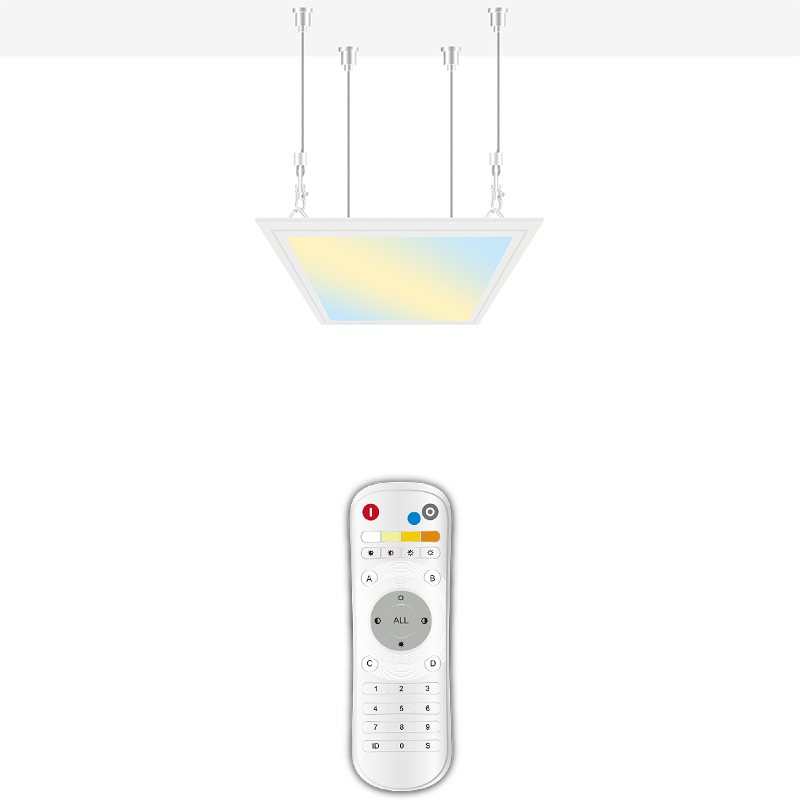

◉ Base on 2.4GHz, control the CCT panel by 2.4G wireless controller, no wiring trouble
◉ Single & all panel control, dimming single & all panel you want
◉ Save the scenes you like, press A, B, C, D to recall the scene.

GET A QUOTE

SPECIFICATION

PRODUCT DESCRIPTION

● CCT dimming range: 2700-6500K

● Different CRI option: 80Ra, 90Ra, 95Ra and 97Ra.
● Soft and uniform light output and flicker free.

● Multiple control modes: 2.4G, Wifi, Zigbee, 0-10V, etc.

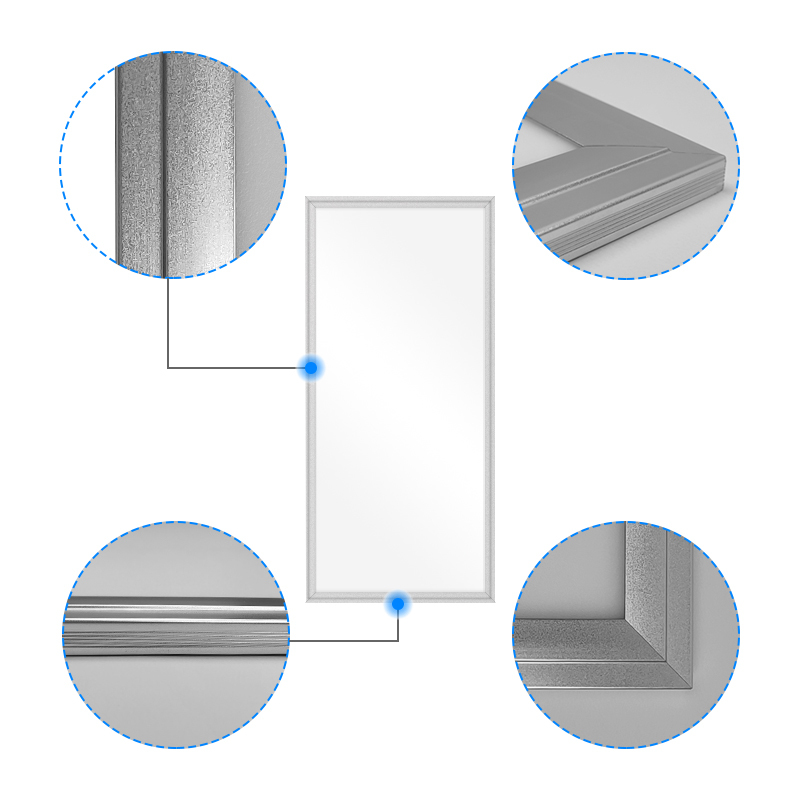

● Panel structure is very strong, better than most other panels.
● Skillful production lines and general material inventory guarantees short lead time.
● IES/LDT files are available.

ALL PANEL SIZE

PRODUCT PARAMETERS

Model No.	WES-PLS3030-18GCP
Size/MM	295×295×10MM
Frame Color	White / Silver
Input Voltage	AC100-240V
Power	18W
LED Type	96PCS SMD2835
CCT	2700-6500K Tunable
CRI	＞80Ra, ＞90Ra, ＞95Ra, ＞97Ra
Luminous Efficiency	100LM/W, 120LM/W
LGP Material	PMMA
Guaranty	5 Years

ALL SIZES OPTION

Size	Power	CCT Range	CRI Option
29529510MM	18W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
29559510MM	24W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
59559510MM	36W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
59559510MM	48W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
62062010MM	36W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
62062010MM	48W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
295119510MM	36W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
295119510MM	48W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
595119510MM	60W	2700-6500K CCT Tunable	80Ra/90Ra/95Ra/97Ra
